Care Tec II TENS/EMS Units.

Features:

Is a sleek device that incorporates the technology of an electric muscle stimulator and a transcutaneous nerve stimulator. Thus, this product's EMS properties are the ideal solution to increase muscle strength, improve range-of-motion, prevent muscle atrophy and increase circulation. At the same time the TENS technology provides pain relief. These two types of electrotherapy are delivered into the body through separate dual channels. The Care Tec II TENS/EMS is FDA-approved and it comes with a year warranty from the manufacturer. It has been clinically-tested for easy, safe and effective operation.

Product Specifications:

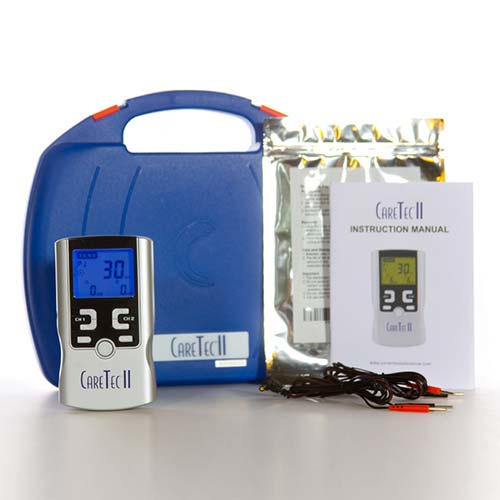

Includes 9v battery, AC plug-in adapter, 4 electrodes, and protective carrying case with built-in handle.

Technical Details for TENS mode:

Waveform: Mono-phase square pulse wave.

Pulse Amplitude: Adjustable, 0~100mA peak at 1000 ohm Load each channel, 1mA/Step.

Pulse Width: Adjustable, from 50 to 300us microseconds, 10μS/step.

Pulse Rate: Adjustable, from 1 to 150 Hz, 1 Hz/step.

Burst Rate adjustable, 0.5 ~ 5Hz; 0.1Hz/step.

Technical Details for EMS mode:

Waveform: Mono-phase square pulse wave.

Pulse Amplitude: Adjustable, 0~100mA peak at 1000 ohm.

Load each channel, 1mA/Step.

Pulse Width: Adjustable, from 50 to 300μS microseconds, 10μSec/Step.

Pulse Rate: Adjustable, from 1 to 150 Hz, 1 Hz/Step.

Contraction Time: Adjustable, 1~30 seconds , 1 Sec./ Step.

Relaxation (OFF) time: Adjustable, 0~60 seconds , 1 Sec./ Step.

Ramp time: Adjustable, 1~6 seconds, 1 Sec.

4.5×2.55×0.9 inches.

Weight: 0.28 lbs (with battery).

Singles.

CareTec II TENS/EMS by Roscoe Medical
